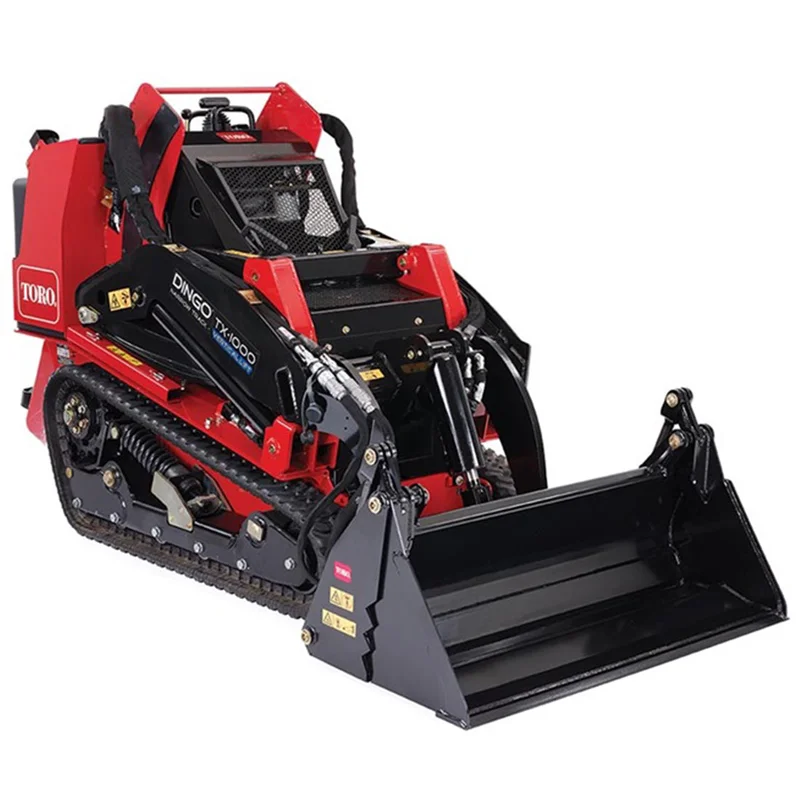

Toro 22478 4-in-1 Bucket Attachment

Description

Fits Models: Dingo 323, 320-D, e-Dingo, TX 427, TX 525 and TX 1000 models

Use as a standard bucket, a leveler, a grapple rake and a blade.

Features:

Bucket

With the jaws completely closed, use this attachment as a standard bucket. Open the Dingo 4-in-1 bucket jaws to dump the contents into a higher area than a standard bucket can reach.

Leveler

With the jaws completely open, use the bucket floor’s rear cutting edge as a leveler. Tip the bucket slightly forward so that the rear cutting edge of the bucket floor is on the ground and the forward edge is off the ground. Lower the cutting edge and begin leveling by dragging it in reverse across the surface of the ground.

Blade

With the jaws completely open, use the back of the bucket as a blade to push material. Or, partially close the jaws and use the bottom of the front bucket to knock the top of clumps and grade with the rear blade.

Grapple

While using the traction units forward and reverse auxiliary function, the side jaws can be used for picking up material by closing them over objects or materials to be transported.
