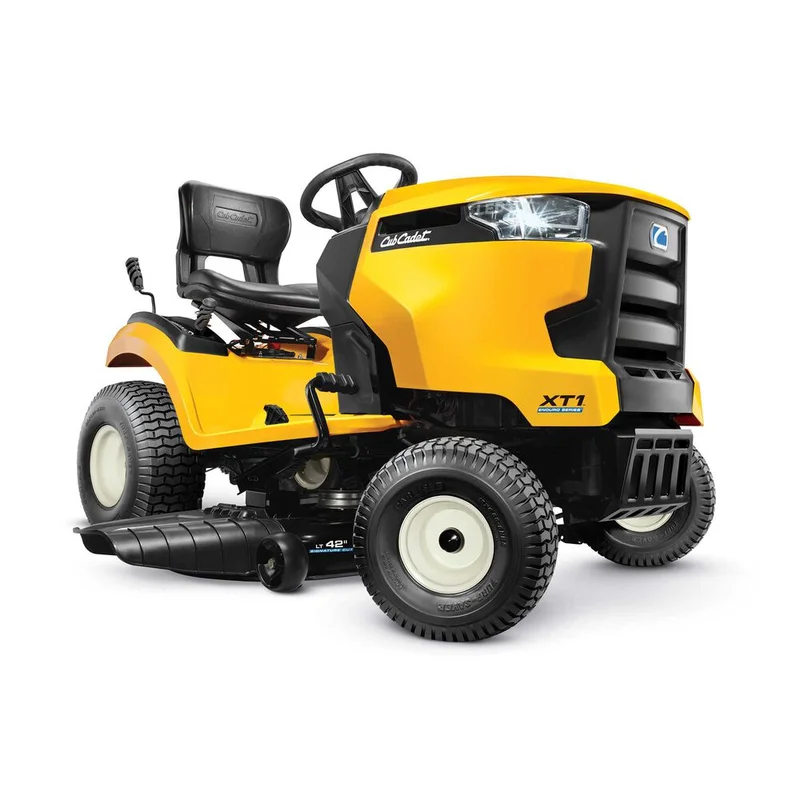

Cub Cadet XT1-LT 42 13AOA9CS010 ********NO LONGER AVAILABLE********

Description

********NO LONGER AVAILABLE********

SET UP AND PREP FEES MAY APPLY

• The Cub Cadet XT1 LT42 is powered by a Kohler single cylinder 541 cc engine
• 42-inch stamped, 13-gauge, twin-blade deck with 12 cutting positions.
• Equipped with an optimized steering system for responsive handling to give a 16-inch turn radius a zero-turn feel.
• 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
• Ideal for mowing up to 1.5 acres of mostly flat terrain.
• Tuff Torq foot controlled hydrostatic transmission,  just push the pedal and go

Engine

• Engine Brand:  Kohler KS540-3011
• Engine Displacement:  541cc
• Fuel Tank Capacity:  3.0 gal.
• Cylinders/Material:  Single
• Engine Start:  Key
• Engine Oil Capacity:  1.8 qts.
• Charging System:  15 amp regulated
• Fuel Gauge:  Fuel sight window
• Air Filter:  Dual element
• Oil Filter:  Yes

Battery

• Battery:  12V 230 cold crank amps
• Battery : Type Standard Lead Acid

Drive System

• Transmission:  Hydrostatic, foot
• Forward Speed:  5.5 MPH
• Reverse Speed:  3.1 MPH
• Rear Axle:  3/4″ w/dual PM steel drive hubs
• Transmission Housing:  Die-Cast Aluminum
• Transmission Type:  Tuff Torq TL-200

Cutting Deck

• Deck Cutting Width:  42″
• Cutting Modes:Discharge/mulch/bagging
• Deck Wash:  Included
• Deck Material:  Steel, 13-gauge
• Deck Attach/Removal:  QuickAttach™ (no tools required)
• Deck Engagement (PTO):  Manual lever
• Deck Construction:  Stamped
• Spindle Construction:  3/4″ with steel cap and Triple Lip Sealed
• Blade(s):  2
• Deck Lift:  Lever
• Cutting Height Range:  1″ – 4″
• Anti-Scalping:  2 ball
• Deck Positions:  12 positions

Warranty

• Warranty:  3-year/unlimited hour warranty
• Frame Warranty:  5-year/unlimited hour warranty
• Front Axle Warranty:  5-year/unlimited hour warranty

Chassis

• Frame:  Robotically welded
• Front Axle:  Cast iron
• Turning Radius:16″
• Rear Tow Hitch:  Included
• Corrosion Protection:  E-coating

Controls

• Cruise Control:  Included
• Brakes:  Automotive-style disc
• Steering Control:  Manual sector and pinion
• Display:  Hour meter

Comfort

• Seat Type:  15″ high-back seat
• Seat Suspension:  Seat spring
• Seat Adjustment:  Lever
• Floor Mats Traction:  Pad

Additional Specifications

• Mulch Kit:  Optional
• Headlight(s):  2 – LED
• Discharge Chute:  Included
• Cup Holder:  Included
• Operator Presence System:  Included
• Bagger:  Optional
• Model Number:  13AOA9CS010

• AIR FILTER:  22-883-01-S1
• OIL FILTER:  12 050 01-S
• FUEL FILTER:  25 050 21-S
• SPARK PLUG:  25 132 28-S OR DCPR7E
• DECK BELT:  954-05021
• DRIVE BELT:  954-05027B
• BLADES ORDER 2:  942-04308A
• XTREME BLADES: 942-04308-X
• IGNITION KEY:  925-1745A
