Description

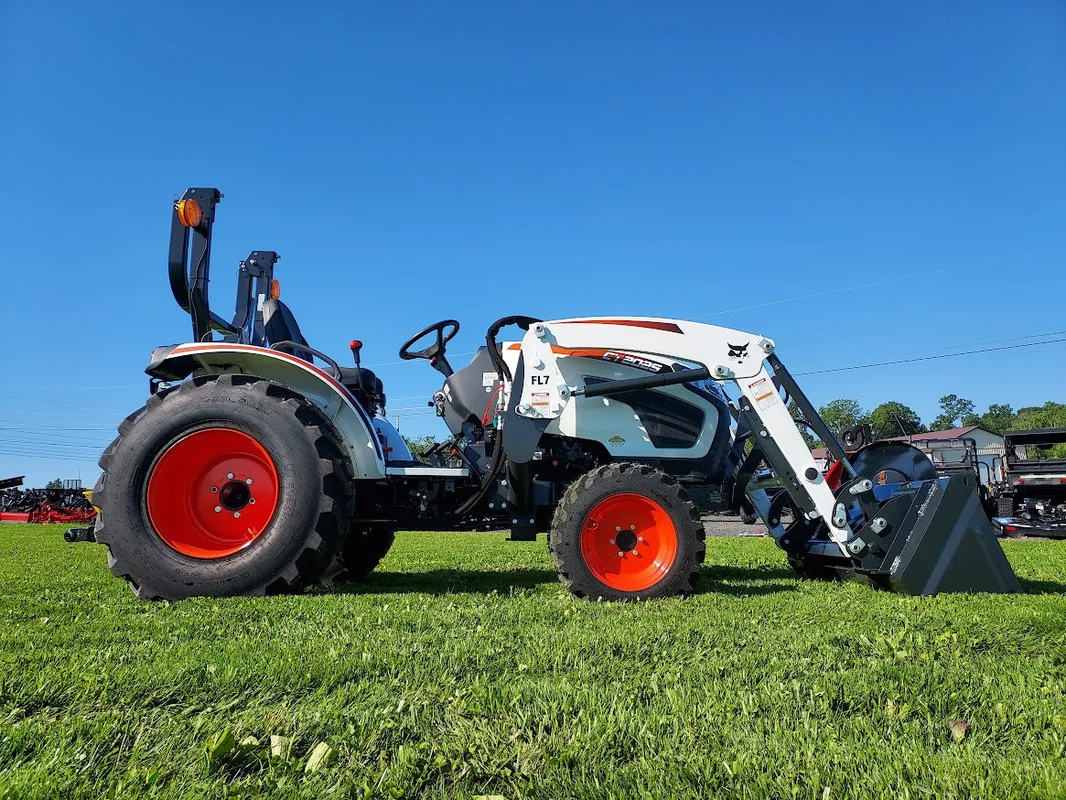

This 25-hp compact tractor provides hydrostatic transmission (HST) or manual-shift transmission (MST) options. Loader is included in price.
Features
- Strong enough for big jobs but small enough to fit into tight areas
- Open workstation with Roll-Over Protective Structure (ROPS)
- Category 1 three-point hitch for using implements
- Integrated loader joystick lever makes front-end loader work easier
- Standard rear PTO/optional mid-PTO
- Count on rugged performance, power, comfort and all-around versatility for small farms, ranches and acreages with the economical CT2025 compact tractor.
- With standard four-wheel drive, this tractor is ideal for hauling material, digging holes, mowing and using implements.
- Climb on and off the tractor with ease thanks to the open cab.
- Pick the controls that fit your working style. The CT2025 offers options for 3-Range hydrostatic transmission or manual-shift transmission
- The integrated joystick lever is within easy reach and makes the font-end loader respond intuitively to your command.
Specifications
Engine
- Horsepower: 24.5 hp
- Displacement: 100 in³
- Number of Cylinders: 3
- Gross HP: 24.5 hp
- Engine Model: 3A165LWM(H)
- Emissions Tier (EPA): Tier 4
Performance
- Operating Weight: 2,634 lbs
- Travel Speed: 9.5 mph
- Travel Speed – Reverse: 6.5 mph
- 3-Point Hitch: Category 1
- 3-pt Lift Control Type: Hydraulic Position Control System
- Lift Capacity at 24″ behind Lift Point: 1,631 lbs
- Rear PTO System: Live
- Rear PTO – RPM: 540
- PTO HP: 21.8 hp
- Mid PTO – RPM: 1976
Transmission
- Type: Infinite, 3 Range Hydrostatic
- Brake Type: Wet Multi-Disc
Capacities
- Fuel Tank: 9 gal
Hydraulic System
- Implement Hydraulic Flow: 6.9 gal/min
- Total Hydraulic Flow: 11.4 gal/min
- Steering Hydraulic Flow: 4.5 gal/min
Dimensions
- Width: 63.4 in
- Ground Clearance: 11.7 in
- Turning Radius: 8′ 0″
- Wheelbase: 5′ 5″
- Front Tire Size: 25X8.5-14 (7-16, 27X8.5-15)
- Rear Tire Size: 15-19.5 (11.2-24, 41X14-20)
Loader Attachment
- Loader Lift Height: 7′ 10″
- Lift Capacity at Bucket Pivot: 1,369 lbs
- Bucket Width: 5′ 0″
